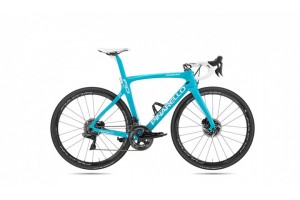

F10 Disc Supported Carbon Road Bike Frame

Brand: Pinarello
Product Code: MPN19F10F7SKU
Availability: In Stock
Price: $609

Available Options

* Frame Size:

* Bottom Bracket:

* Surface Technics:

Qty: +
-
  - OR -

Unit of length & Weight: Millimeter (mm)  & Gram (g)

Approx weight (Without Paint) 1530g±50g= Frame+Fork+Seatpost

CC CF L I A B F P T D R G REACH STACK
440 435 503 118 74.4 70 564 406 110 67 43 367 357 501
465 455 515 125 74.4 70.5 573 406 115 72 43 367 367 512
500 480 525 138 74 71.4 575 406 120 72 43 367 374 520
515 495 535 145 73.7 72 577 406 125 72 43 367 380 527
530 510 545 149 73.7 72.5 583 406 139 72 43 367 386 542
550 530 557 157 73.4 72.8 590 408 158 72 43 367 389 561
560 540 565 164 73 73.2 591 408 165 72 43 367 391 569
575 555 575 168 73 73.7 596 408 179 72 43 367 397 584




* Warranty: All carbon frames we sold are covered by a 2 year limited warranty against manufacturing defect. Click here for more

* Material: All our carbon frames/forks are made of 100% imported Toray T800 from Japan Click here for more

* Frameset Package: include frame, fork, carbon seat post, Clamp, Headset. Rear hanger.

NOTE: THIS IS NOT FULL COMPLETE BIKE FOR SALE!!! FRAME ONLY

* Packaging dimension: 85*25*75cm, approx weight: 4Kg View sample

* Head tube size: 1 1/8 to 1 1/2 tapered integrated View sample

* Free offer of headset spacers(if need). View sample

* BB types available: PF30/68: 46mm,  Please see drop-down menu for available options        offer on each particular frame

* Internal cable routings: For rear brake, front and rear derailleurs View sample

*All Road bike frames accept 700c wheels with 130mm rear hub spacing, fully compatible with Sram, Campagnolo & Shimano (DI2 and Mechanical) drivetrains.

* Customs tax & Import duty service: We can provide customs clearance service for the shipment import & export, as well as advance payment of import duties of taxes, THC, and tax refund Contact us for more

* Images color deviation: All frame photos are taken from actual frames. Color deviation may appear slightly differently on your monitor depending on type of monitor used. We will send photos to your email for reference and confirm & approval deliver before frame completed production.
