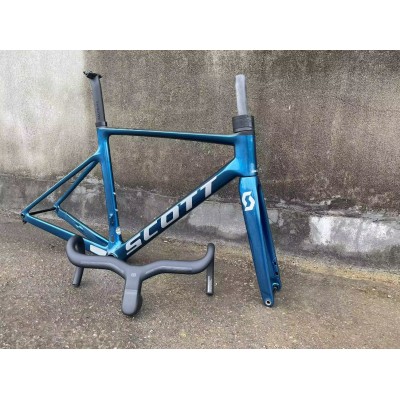

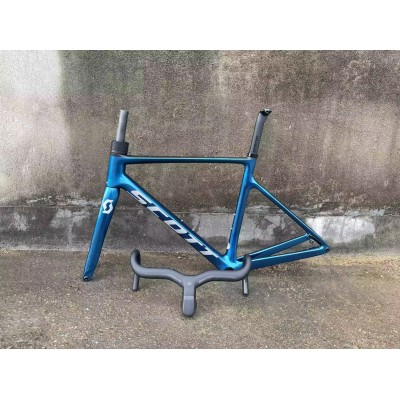

Scott Addict Rc Carbon Fiber Road Bicycle Frame Blue

Scott Addict Rc Carbon Fiber Road Bicycle Frame Blue-Scott Addict Rc
Click image for Gallery
  • Brands Scott
  • Product Code: MPN23SAR004SKU
  • Availability: 239
  • $859.00
  •

Available Options

+
-


Tags: Scott Addict Rc Carbon Fiber Road Bicycle Frame Blue


Size47cm59cm52m54cm56cm
A-Head tube Angle
70.5°

71°

72.0°72.5°73°
B-Head tube Length
97mm102mm115mm135mm155mm
C-Top Tube Length(horizontal)
520mm530mm540mm550mm565mm
D-Standover Height
720mm740mm755mm778mm798mm
E-BB Offset
-70mm-70mm-70mm-70mm-70mm
F-BB Height274.5mm274.5mm274.5mm274.5mm274.5mm
G-Addict Rc987.5mm994mm991mm992mm1000mm
H-BB Center To Toptube Center
410mm430mm460mm480mm500mm
I-BB Center To Top Of Seattube
470mm490mm520mm540mm560mm
G-Seat-Tube Angle
74.5°74.5°74°73.6°73.3°
K-Chain-Stay Length
410mm410mm410mm410mm410mm
L-Reach
380mm388mm389mm390mm395mm
M-Stack
504mm511mm526.5mm548mm568.5mm
N-Stem Length
90mm90mm100mm110mm110mm
O-Centre Saddle-Centre Bar(HOR.)
635mm650mm674mm694mm710mm
P-Centre Saddle-Centre Bar(VERT.)
92mm105mm106mm103mm100mm
Q-Reach Centre Bar
454mm463mm474mm485mm492mm
R-Stack Centre Bar
563mm570mm586mm607mm627.5mm

* Warranty: All carbon frames we sold are covered by a 2 year limited warranty against manufacturing defect. Click here for more

* Material: All our carbon frames/forks are made of 100% imported Toray T1000 from Japan Click here for more

* Frameset Package: include frame, fork, carbon handlebar, carbon stem, carbon seat post, spacers, clamp, headset. rear hanger, the rear and fornt through axles will be included the disc frame.

* Packaging dimension: 85*25*75cm, approx weight(including Packag): 6Kg View sample

* The Scott Addict Rc frame supports mechanical groupset and Di2 groupset

* BB types available: BB86 (41-86.5mm)

* Head Tube Diameter 1 1/4" . Drop: 125mm Reach: 75mm

* Internal cable routings: Internal and Integrated Road Bike Handlebar View sample

*All Road bike frames accept 700c wheels 130 mm Hubs Wheels(12 x 100 12 x 142mm thru-axle)

*The weight of the frame (size 54cm),Frame: 1056g+/-20g. fork with axle:493g. seat post:160g, handlebar:326g

* Customs tax & Import duty service: We can provide customs clearance service for the shipment import & export, as well as advance payment of import duties of taxes, THC, and tax refund Contact us for more

* Images color deviation: All frame photos are taken from actual frames. Color deviation may appear slightly differently on your monitor depending on type of monitor used.
