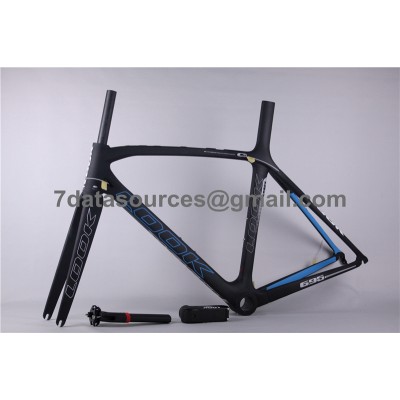

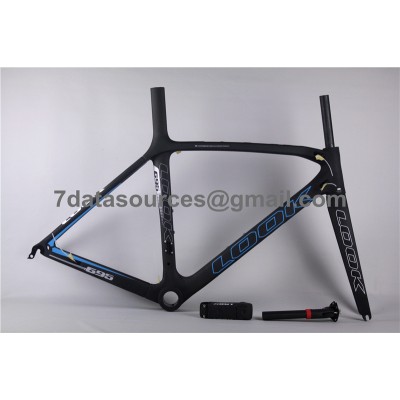

Look 695 Carbon Fiber Road Bike Bicycle Frame Black Matte

Look 695 Carbon Fiber Road Bike Bicycle Frame Black Matte-Look Frame
Click image for Gallery
  • Brands Look
  • Product Code: MPN15BL17SKU
  • Availability: 998
  • $525.00

Available Options


Tags: Look 695 Carbon Fiber Road Bike Bicycle Frame Black Matte, Look Frame

Unit of length & Weight: Millimeter (mm)  & Gram (g)

Approx weight (Without Paint)= Frame+Fork+Seatpost+Stem

Size Seat tube Top tube Effective top tube Head tube Chain stay WB Seat tube angle Head tube angle Approx weight
XS 605 498 511.9 122.5 405 981 74.8° 71° 1630g
S 630 513 527.9 140.5 405 977 75.5° 72° 1650g
M 665 530 544.1 162.5 405 989 74° 73° 1670g
L 700 543 559.5 170.5 405 1001 73.8° 73° 1690g

                  ***************Fixed value for each Look 695 frame size of Top tube to top Seat post length = 160mm***************


* Warranty: All carbon frames we sold are covered by a 2 year limited warranty against manufacturing defect. Click here for more

* Material: All our carbon frames/forks are made of 100% imported Toray T800 from Japan Click here for more

* Frameset Package: include frame, fork, stem, carbon seat post, Clamp, Headset. Rear hanger.

* Packaging dimension: 85*25*75cm, approx weight: 4Kg View sample

* Head tube size: 1 1/8 to 1 1/2 tapered integrated , upper: 42mm , lower: 47mm View sample

* Free offer of headset spacers(if need). View sample

* BB types available: BSA/BB68: English threading 33.8mm (Inner Diameter), BB30/68: 42mm I.D., PF30/68: 46mm I.D, BB91, BB386. Please see drop-down menu for available options        offer on each particular frame

* Internal cable routings: For rear brake, front and rear derailleurs View sample

*All Road bike frames accept 700c wheels with 130mm rear hub spacing, fully compatible with Sram, Campagnolo & Shimano (DI2 and Mechanical) drivetrains.

* Customs tax & Import duty service: We can provide customs clearance service for the shipment import & export, as well as advance payment of import duties of taxes, THC, and tax refund Contact us for more

* Images color deviation: All frame photos are taken from actual frames. Color deviation may appear slightly differently on your monitor depending on type of monitor used.
