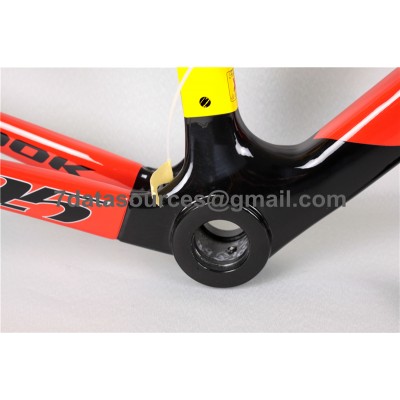

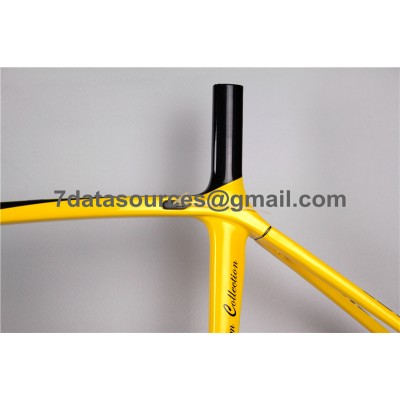

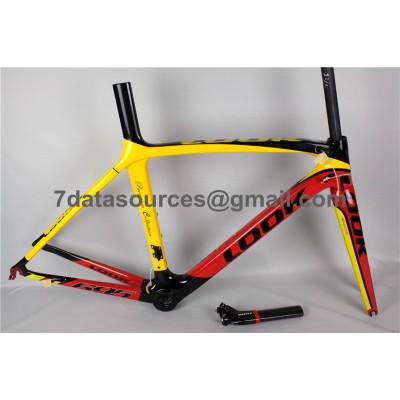

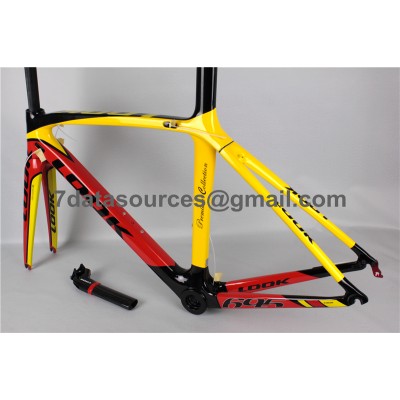

Look 695 Carbon Fiber Road Bike Bicycle Frame Yellow

Look 695 Carbon Fiber Road Bike Bicycle Frame Yellow-Look Frame
Click image for Gallery
  • Brands Look
  • Product Code: MPN15BL2SKU
  • Availability: 999
  • $525.00

Available Options


Tags: Look 695 Carbon Fiber Road Bike Bicycle Frame Yellow, Look Frame

Unit of length & Weight: Millimeter (mm)  & Gram (g)

Approx weight (Without Paint)= Frame+Fork+Seatpost+Stem

Size Seat tube Top tube Effective top tube Head tube Chain stay WB Seat tube angle Head tube angle Approx weight
XS 605 498 511.9 122.5 405 981 74.8° 71° 1630g
S 630 513 527.9 140.5 405 977 75.5° 72° 1650g
M 665 530 544.1 162.5 405 989 74° 73° 1670g
L 700 543 559.5 170.5 405 1001 73.8° 73° 1690g

                  ***************Fixed value for each Look 695 frame size of Top tube to top Seat post length = 160mm***************

* Quality assurance time: 2years quality guaranteed  Click here for more

* Material composition: All our frame with fork are 100% real full carbon fiber material *Toray T800* that import from japan Click here for more

* Package included: Carbon frame, Carbon front fork, Carbon seatpost, Carbon Stem, Clamp, Headset. Rear hanger.

* Package approx dimension: 85*25*75cm   *   Package approx weight: 4Kg    *   Packaging box: Carton box View sample

* Head tube size: 1 1/8 to 1 1/2 tapered integrated | upper: 42mm / under: 47mm View headset sample Free offer gaskets View sample

* BB shell inner diameter(English standard): BSA/BB68: 24mm { 33.8mmOutside diameter ) }   ||   BB30: 42mm  ||  BB91: 24mm  ||  PF30: 46mm

* Internal front and rear derailleur cable routing View sample

* Road bike 700c wheels with 130mm hubs and Sram & Campagnolo & Shimano ( DI2 and Mechanical ) parts etc..can 100% match our carbon fiber frame.

* Customs tax & Import duty: We can provide customs clearance service for the shipment import & export, as well as advance payment of duty of taxes, THC, and tax refund Contact us for more

* About color difference: All items are real shooting; For technology, display, light, environmental reasons may be a slight deviation phenomenon, please in kind prevail.
