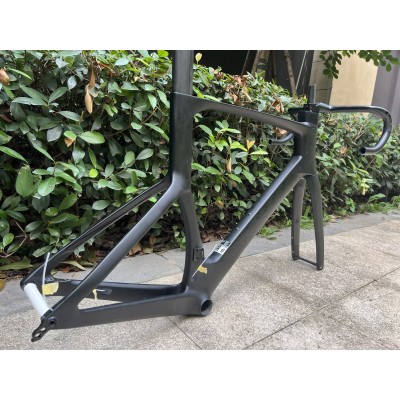

SCOTT FOIL RC Carbon Fiber Road Bicycle Frame Black

Name: SCOTT FOIL RC Carbon Fiber Road Bicycle Frame Black - SCOTT FOIL RC
Brand: Scott
Price: 867 USD
Availability: InStock

Click image for Gallery

Brands Scott
Product Code: MPN23SFR002SKU
Availability: 239

$867.00

Available Options

Handlebar Length

Stem Length

Brake Type

Frame Size

Bottom Bracket

Surface Technics

Qty +
-

0 reviews / Write a review

Tags: SCOTT FOIL RC Carbon Fiber Road Bicycle Frame Black

Description
Reviews (0)

Size	47cm	59cm	52m	54cm	56cm
A-Head tube Angle	70.5°	71°	72.0°	72.5°	73°
B-Head tube Length	103mm	108mm	121mm	141mm	161mm
C-Top Tube Length(horizontal)	520mm	530mm	540mm	550mm	565mm
D-Standover Height	746.4mm	759.6mm	779.4mm	801mm	820mm
E-BB Offset	-70mm	-70mm	-70mm	-70mm	-70mm
F-BB Height	274.5mm	274.5mm	274.5mm	274.5mm	274.5mm
G-Wheel Base	987.5mm	993.7mm	990.7mm	992.6mm	999.9mm
H-BB Center To Toptube Center	450.8mm	480.9mm	501.4mm	521.6mm	541.4mm
I-BB Center To Top Of Seattube	451.8mm	481.9mm	502.4mm	522.6mm	542.4mm
G-Seat-Tube Angle	74.5°	74.5°	74°	73.6°	73.3°
K-Chain-Stay Length	412mm	412mm	412mm	412mm	412mm
L-Reach	380mm	388mm	389mm	389mm	394.5mm
M-Stack	505mm	511mm	527mm	548mm	568mm
N-Stem Length	80mm	90mm	100mm	110mm	110mm
O-Centre Saddle-Centre Bar(HOR.)	635mm	650mm	674mm	694mm	710mm
P-Centre Saddle-Centre Bar(VERT.)	92mm	105mm	106mm	103mm	100mm
Q-Reach Centre Bar	454mm	463mm	474mm	485mm	492mm
R-Stack Centre Bar	563mm	570mm	586mm	607mm	627.5mm

* Warranty: All carbon frames we sold are covered by a 2 year limited warranty against manufacturing defect. Click here for more

* Material: All our carbon frames/forks are made of 100% imported Toray T1000 from Japan Click here for more

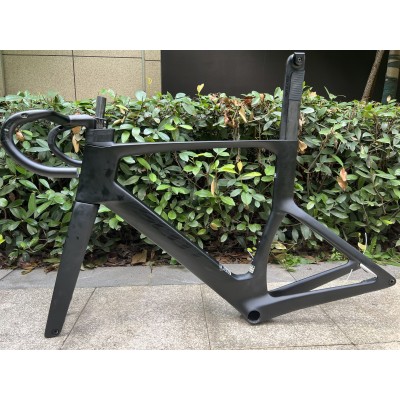

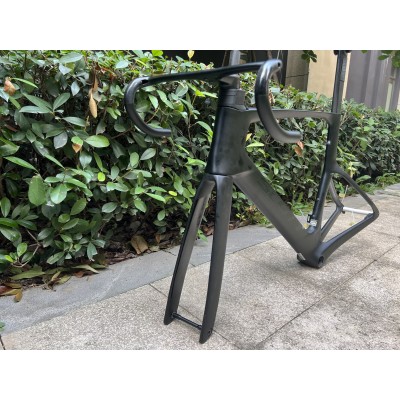

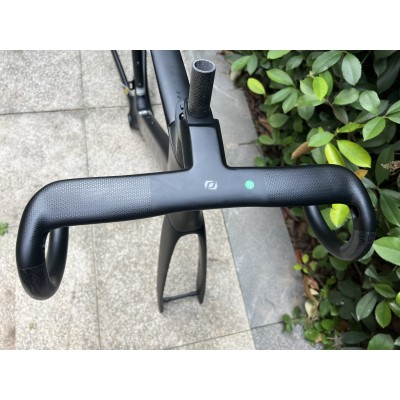

* Frameset Package: include frame, fork, carbon handlebar, carbon stem, carbon seat post, spacers, clamp, headset. rear hanger, the rear and fornt through axles will be included the disc frame.

* Packaging dimension: 85*25*75cm, approx weight(including Packag): 6Kg View sample

* The Scott Foil Rc frame supports mechanical groupset and Di2 groupset

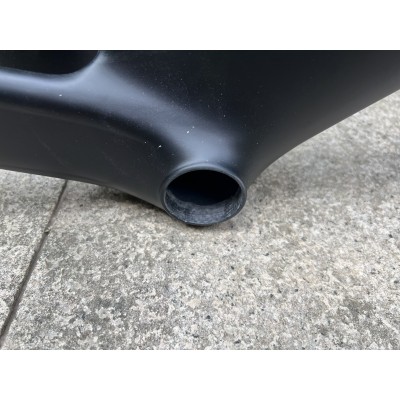

* BB types available: BB386

* Internal cable routings: Internal

*All Road bike frames accept 700c wheels 130 mm Hubs Wheels（12 x 100 12 x 142mm thru-axle）

*The weight of the frame,Frame: 1153g+/-20g. fork with axle:437g. seat post:302g, handlebar:344g

* Customs tax & Import duty service: We can provide customs clearance service for the shipment import & export, as well as advance payment of import duties of taxes, THC, and tax refund Contact us for more

* Images color deviation: All frame photos are taken from actual frames. Color deviation may appear slightly differently on your monitor depending on type of monitor used.
